My neighbor backs out of his garage like he’s defusing a bomb. Slow. Tense. Mirror checks every two seconds. The street is narrow, the wall is close, and one wrong inch means a scraped door. Fitting a car turntable for garage use can end that nightly routine.
Not everyone can knock down a wall or buy extra land. Most of us work with what we have, and what we have is usually a tight strip of tarmac. This piece walks through the options, the numbers worth checking, and the details people forget until the concrete is already dry.
Why Reversing Goes Wrong
Reversing blind is a bad habit built by bad layouts. You can’t see the kids’ bikes. You can’t see the bin. Mirrors help, cameras help, but a pillar or a parked van still hides plenty. Drivers also rush, since the morning school run won’t wait.
A car rotating platform takes the whole problem away. You drive in nose first, press a button, and the car spins until it faces the road. Then you drive out forward, eyes on the traffic, not on a tiny screen. It sounds almost too easy, but the idea is old and solid.
How the Spinning Part Works

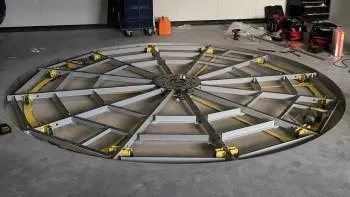

Underneath, it is simpler than most people think. A round steel deck sits on nylon wheels. Four small motors push the rim gently, a bit like a hand turning a lazy Susan. Nothing fancy happens down there, and simple parts tend to break less often.
A control box sets the speed, and the start is soft, so nothing lurches. Most units turn between 0.2 and 2 rpm, so one full circle can take half a minute or more. A remote lets you run it from the driver’s seat. Press a start button first, then rotation.
Sizing It for Your Car
Measure the car you own, not the one you hope to buy. Add the tow bar, the wing mirrors, the roof box you swear you’ll remove someday. Many cars fit a deck between 3 and 4 meters across. Larger SUVs and double garages may want 5 meters or more.
Weight matters too. Standard decks carry 2, 3 or 4 tones, which covers family cars and most pickups. Check the fully loaded weight, boot stuffed and everyone aboard. Floor-mounted versions add only about 12 cm of height, so the ramp stays gentle.
Pit or Floor Mounted?
A pit unit sits flush with the ground. It looks neat, and the car just rolls on. The catch is digging. You need a hole about 25 cm deep, plus drainage, because standing water and motors never get along. Worth every shovelful for some people.
A floor-mounted one skips the digging. It bolts down on a flat slab and goes together fast. You do get a low edge to drive over, so a short ramp is part of the deal. Tight budgets often lean this way. Neither choice is wrong.
Costs Nobody Mentions Upfront
The price of the unit is only the start. Digging, concrete, power cabling and freight all land on the same invoice sooner or later. A rough budget for a home setup often sits somewhere between six and twenty thousand dollars. Every site differs.
Ask for a drawing before you pay anything. A clear plan shows pit depth, cable runs and the power type your house has, whether single-phase or three-phase. Skipping that step is how people end up cutting fresh concrete twice. Any car turntable for garage project deserves a proper plan.
Small Details Before You Buy
Check the top surface. Checker plate grips well in the wet, though plywood or stainless looks smarter in a showroom-style garage. Ask about the motor too. Outdoor units may need a waterproof version, since rain finds every gap eventually. Small choices, big difference later.
Ask whether it can rotate by hand too, because a power cut shouldn’t trap your car. Warranty counts as well. A good car rotating platform should offer two years on the whole unit, in writing, not just a nod across a table. Boring paperwork, yes, but it protects you.
Conclusion
Backing out blind is not a skill worth keeping. A spinning platform turns a tense, mirror-twitching routine into a quiet, forward only exit. Measure the car, pick pit or floor, ask about costs early, and the install usually goes smoothly. And your bumper will thank you.
